Louvretec Retractable Roofs

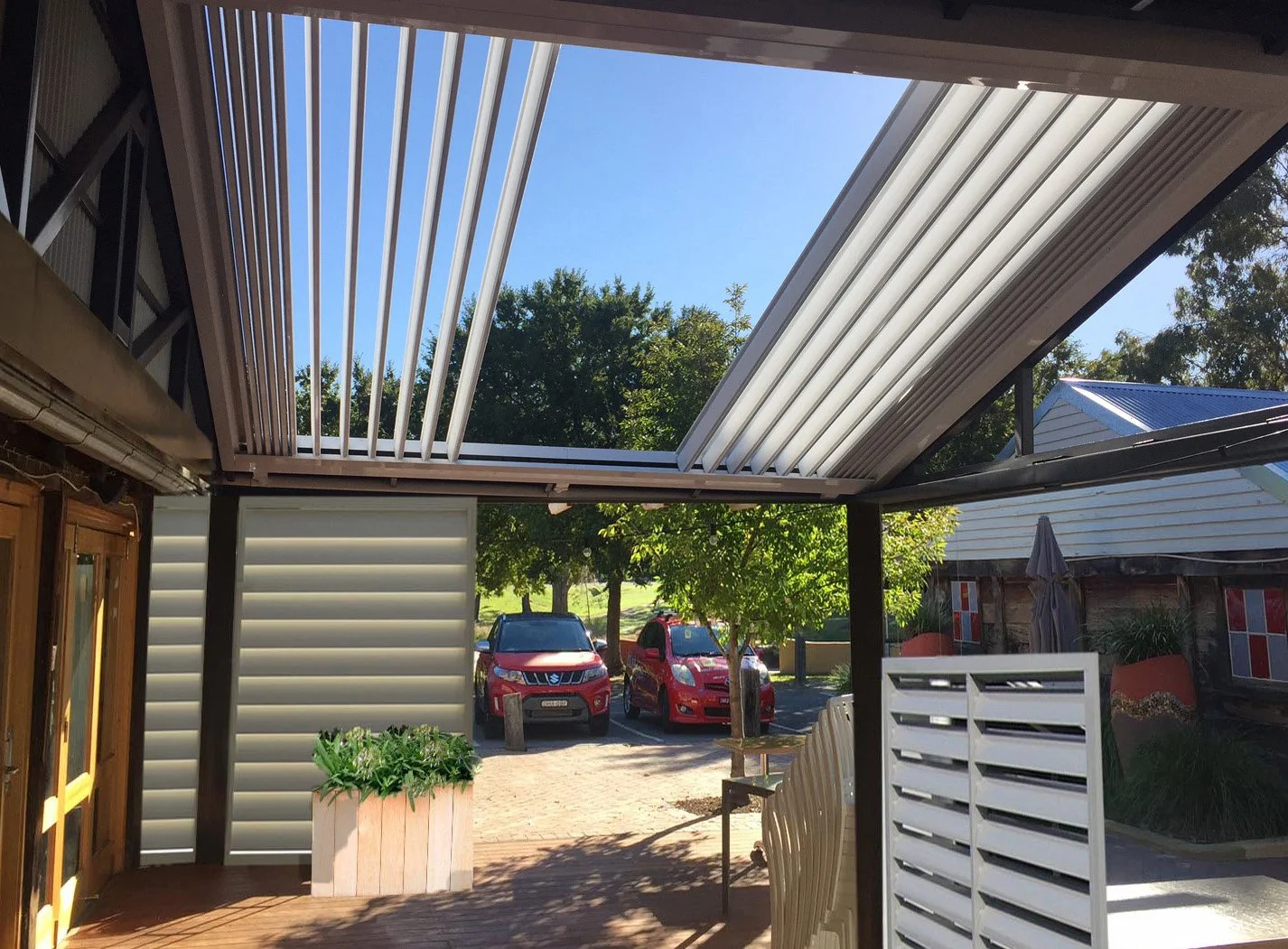

Introducing the Louvretec Retractable Roof.

This innovative stacking or retractable system uses new technology designed, developed and extensively tested by Advanced Design Innovations (ADI) in Australia. Now, in joint collaboration with ADI, Louvretec is pleased to announce that this next generation Retractable Roof.

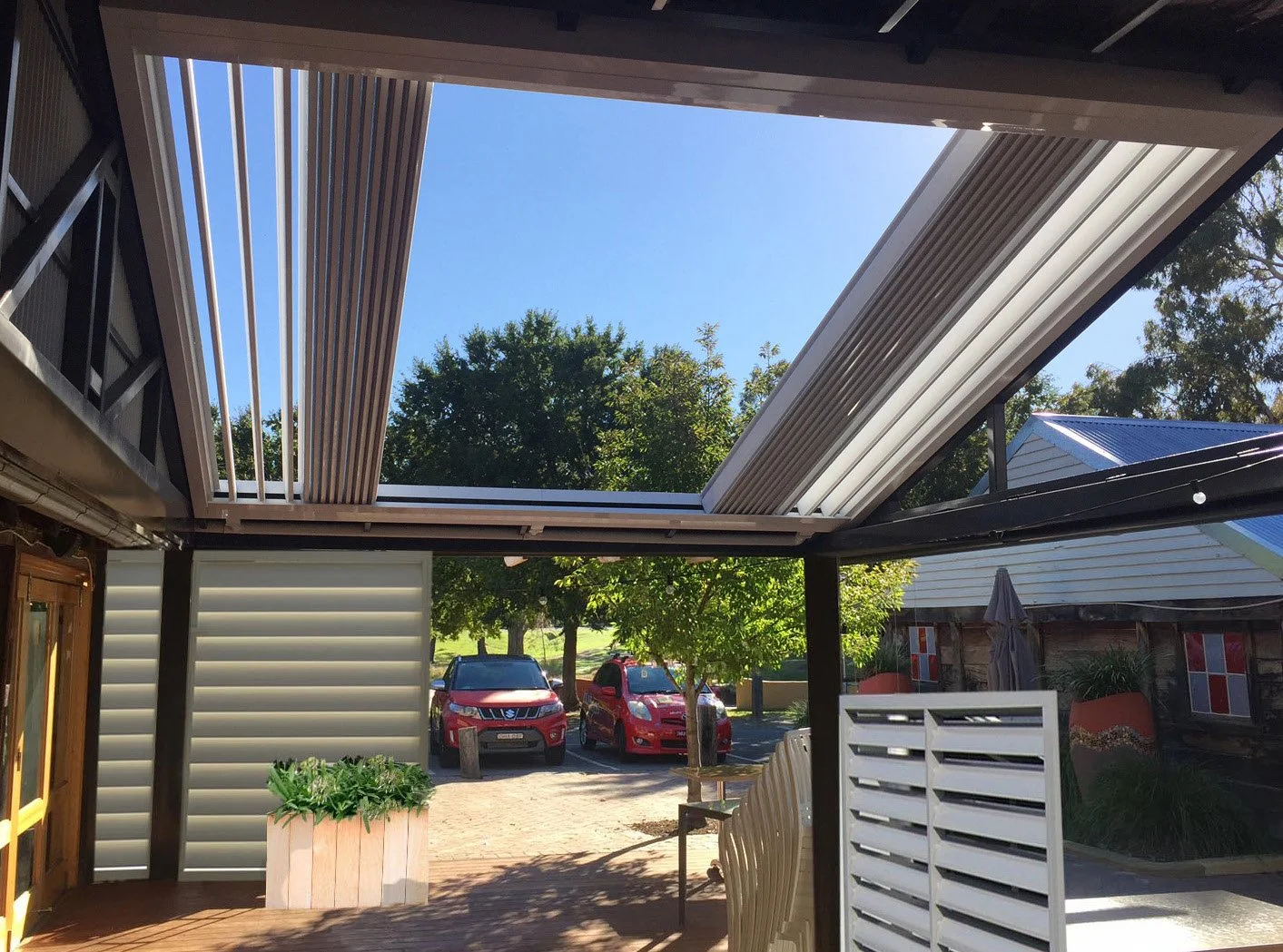

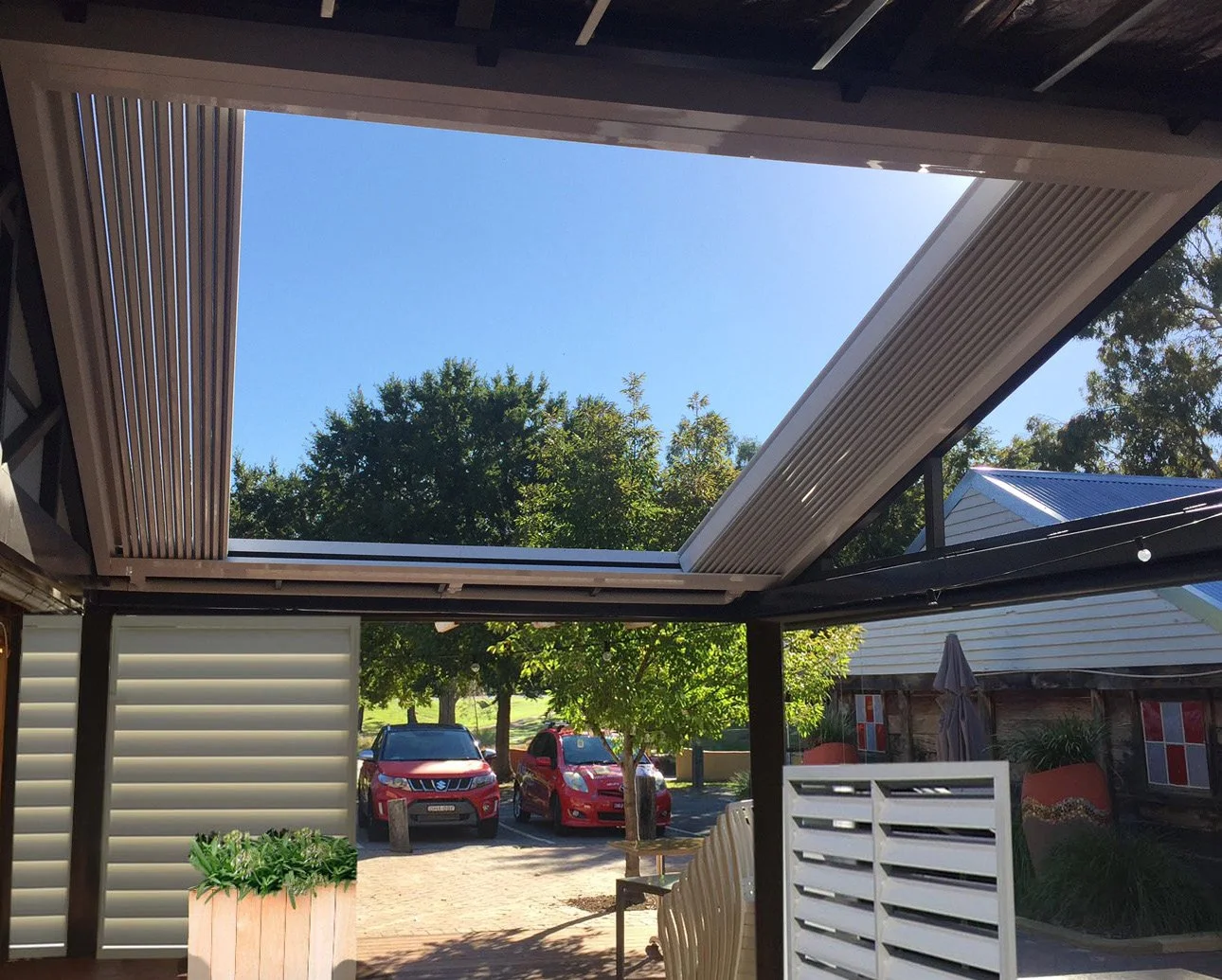

Featuring all the attributes of conventional Opening Roofs, the Louvretec Retractable has the added advantage that at the touch of a button it rotates to 90 degrees and retracts away, leaving clear open spaces above.

Uninterrupted sun in winter…

The stars above on a summers evening…

Wide open views anytime you want…

Shade and a cool breeze in summer…

Covered protection from wind and stormy weather…

Spoilt for choice – perfect!

The Louvretec Retractable Opening Roof System

Retractable Louvretec System

220 Retract Blade
220 Slimline Blade
220 Super Blade

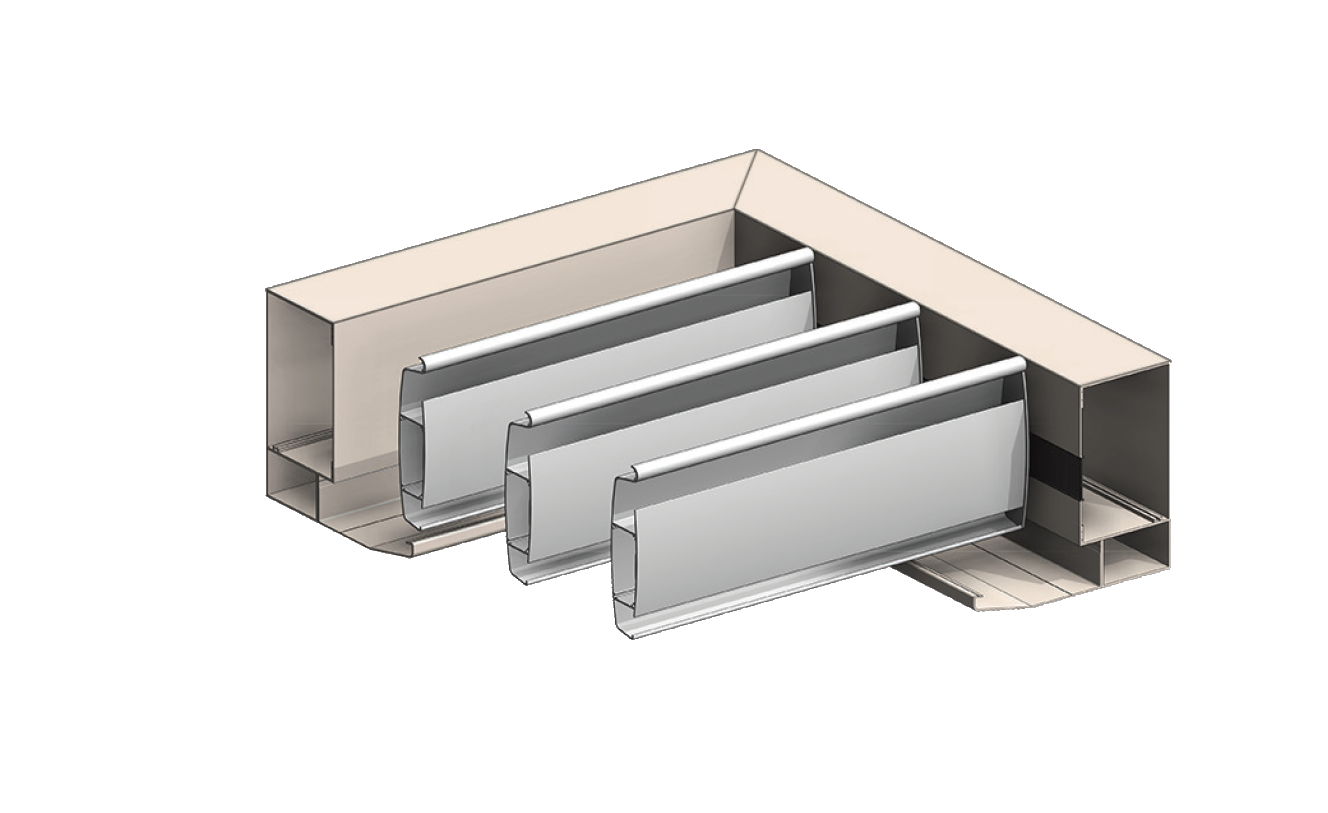

Rotates to 90° to Retract

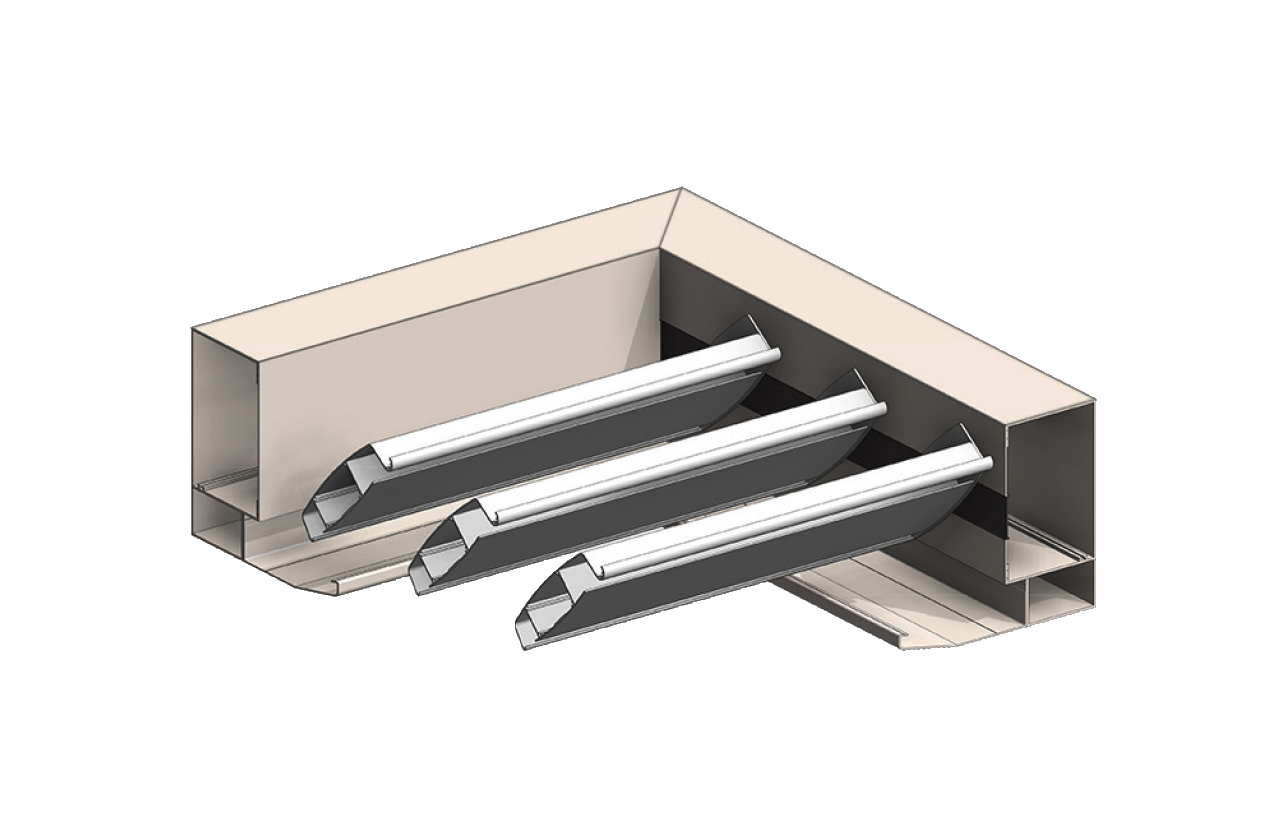

Roof Operates To 135° Open
Retracts Leaving Over 70% Open Space

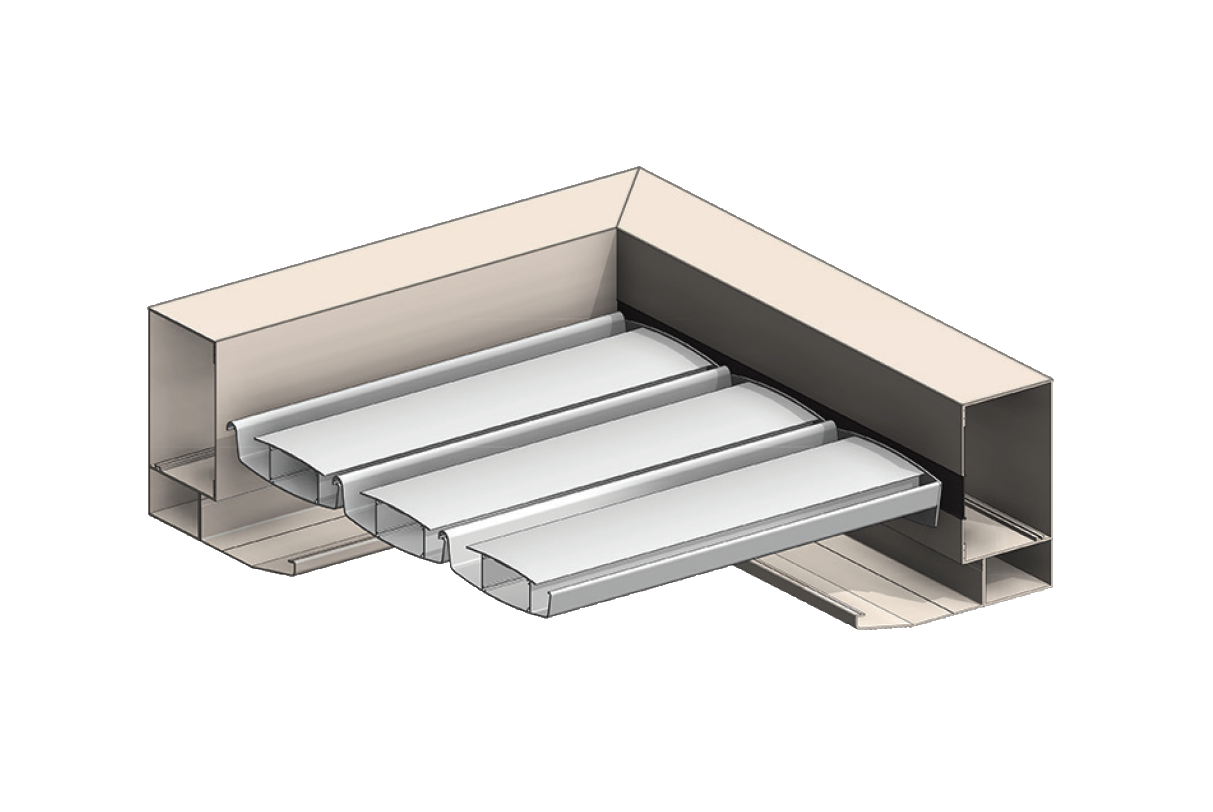

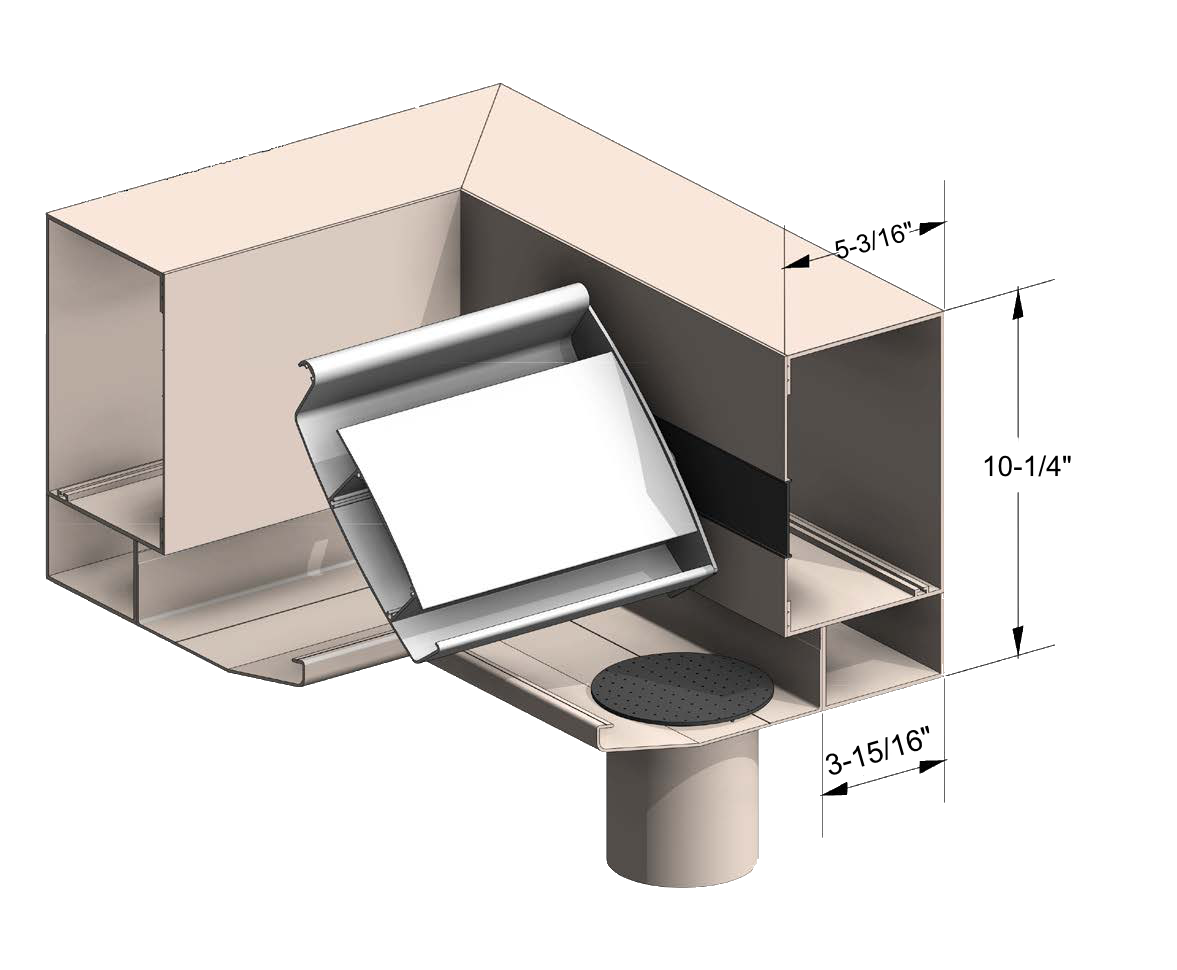

Roof Closed
Retract Roof Section
Hidden Somfy Tubular Motors

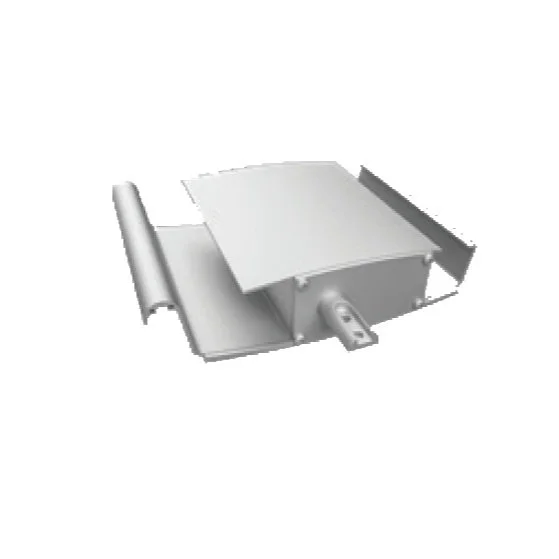

220 Retract Louver Blade

Why Retract?

There is an ever increasing range of outdoor sun control products that have the added feature of retracting when not in use. In many

ways these provide the best of both worlds. Functional when needed, retracted or out of sight when not in use.

The options are many and varied and cover a wide range of products and end user applications.

Header Beams

2x8 Extruded Beam
6061 Extruded Aluminum. 1/8” Wall Thickness. Great For Concealing Electrical and 2” Recessed Lights.
Powder Coated To Any Color. Available in Lengths Up To 34 Feet.
2x10 Extruded Beam
6061 Extruded Aluminum. 1/8” Wall Thickness. Great For Concealing Electrical and 2” Recessed Lights.
Powder Coated To Any Color. Available in Lengths Up To 34 Feet.
2x12 Extruded Beam
6061 Extruded Aluminum. 1/8” Wall Thickness. Great For Concealing Electrical and 2” Recessed Lights.
Powder Coated To Any Color. Available in Lengths Up To 24 Feet.
6x10 Extruded Beam
6061 Extruded Aluminum. 1/4” Wall Thickness. Great For Concealing Electrical and Up To 4” Recessed Lights.
Powder Coated To Any Color. Available in Lengths Up To 30 Feet.
Double Beam
Combine Any Size Beams Together To Achieve Longer Spans and Heavier Loads.
Triple Beam
Combine Any Size Beams Together To Achieve Longer Spans and Heavier Loads.

All aluminum louvers and extrusions used in Louvretec’s systems are manufactured in an IS09002 quality assured environment to AS1866 & AS3902 standards. Marine grade stainless steel is used for drive axles, with stainless steel componentry fixings being standard.

Post Options

4x4 Extruded Post
6061 Extruded Aluminum. 1/8” Wall Thickness. Great For Concealing Drainage & Electrical When Used With A Single Beam.
Powder Coated To Any Color. Available In Heights Up To 24 Feet.
7x7 Extruded Post
6061 Extruded Aluminum. 1/8” Wall Thickness. Great For Concealing Drainage & Electrical When Used With Single Or Double Beams.
Powder Coated To Any Color. Available In Heights Up To 24 Feet.
Tuscan Round Column
Fiberglass / Concrete Material, Painted To Any Color, Great for Concealing Drainage and Electrical.
Available in Widths: 8,10,12 Inches & Heights: From 8-12 Feet.
Tuscan Round Fluted Column
Fiberglass / Concrete Material, Painted To Any Color, Great for Concealing Drainage and Electrical.
Available in Widths: 8,10,12 Inches & Heights: From 8-12 Feet.
Tuscan Square Column
Fiberglass / Concrete Material, Painted To Any Color, Great for Concealing Drainage and Electrical.
Available in Widths: 8,10,12 Inches & Heights: From 8-12 Feet.
Tuscan Square Fluted Column
Fiberglass / Concrete Material, Painted To Any Color, Great for Concealing Drainage and Electrical.
Available in Widths: 8,10,12 Inches & Heights: From 8-12 Feet.

Product Overview

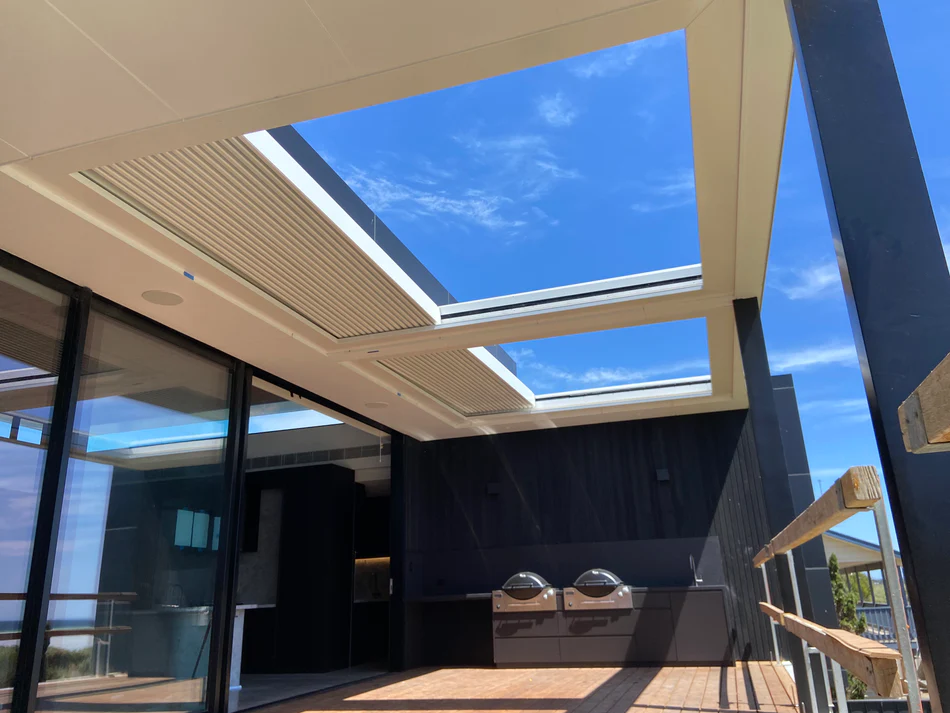

220 Retract Opening Roof

Engineered Retractable Opening Roof

The all-new 220 Retract Opening Roof has been carefully engineered to incorporate a number of unique features:

Designed to be manufactured in module size of up to 19’ long, the heavy duty 8-11/16” blade spans from 16’5” in low wind zones down to 13’ 2” in extra high wind zones.
These unique and stylish louvers can be stacked to 28% of there opening space, then can be fully extended and then closed to form a sealable roof.
The louvers are rotated to 90 degrees for retracting and stacking, however can be extended fully open through to 135 degrees to ensure the full benefits of an operable system.
As the louver blades all retract to one end the 220 Retract is available in two distinct configurations:

1: Frame for sides- with louvers stacking against the house, or design permitting, under the soffit.

2: Frame three sides- allowing clear, open spaces when the louvers are in retract position.

Design Options

Simply Supported
Length Extended - Continuous Span
Width Extended
Cantilevered Frame

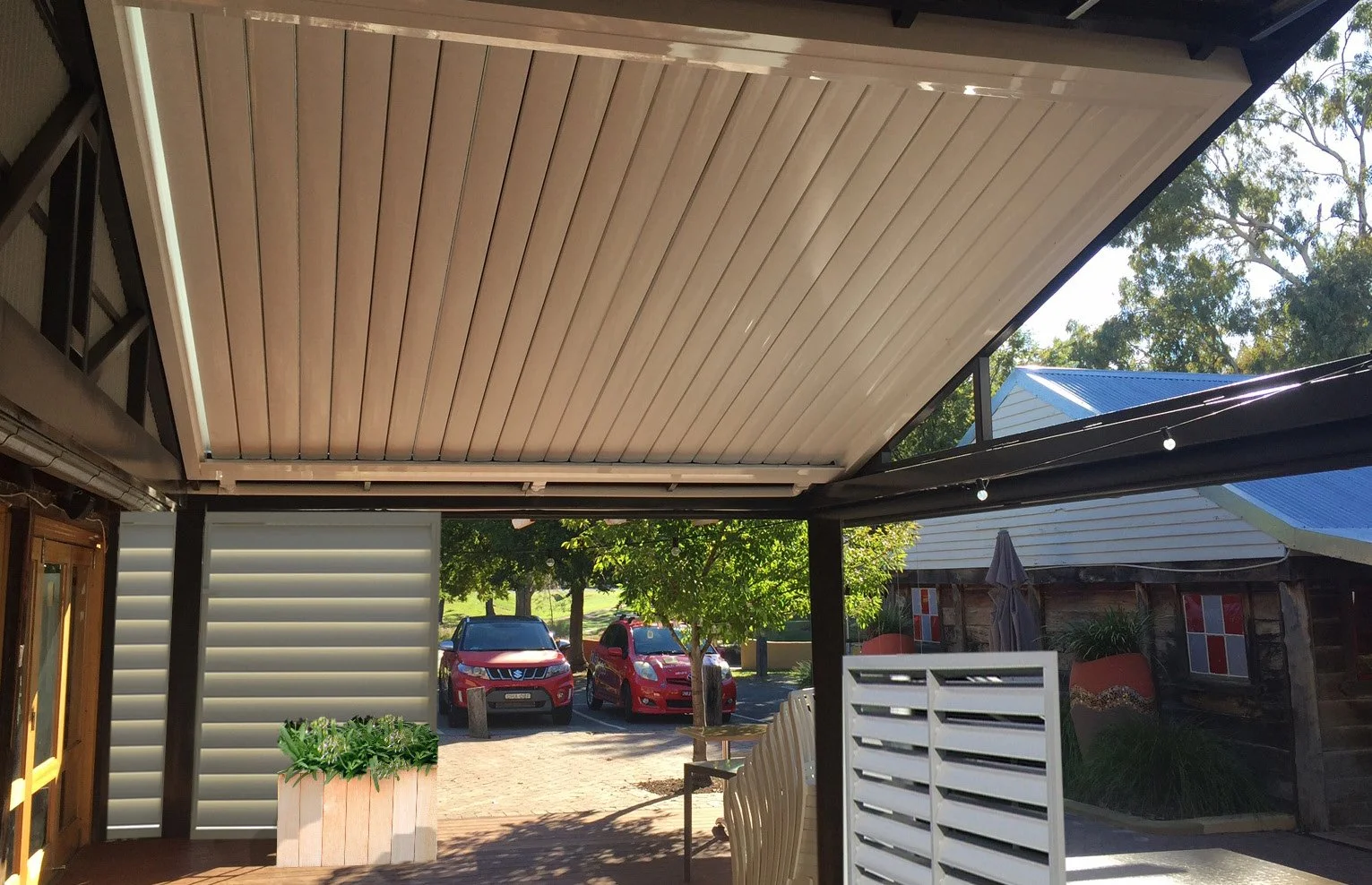

Blades Closed

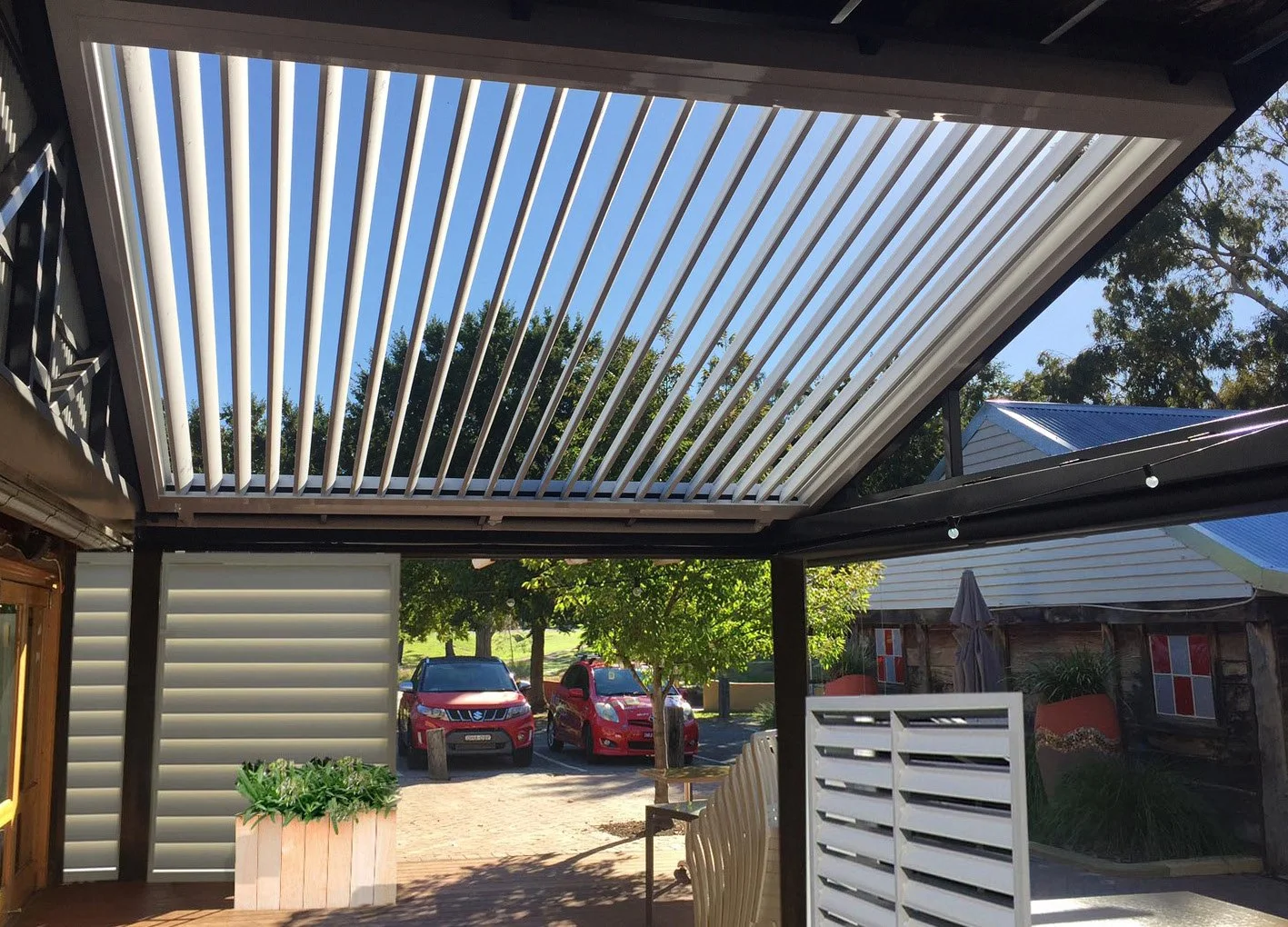

Blades Open
Blades Retracting…..
Blades Retracting…..
Blades Retracting…..
Blades Retracted

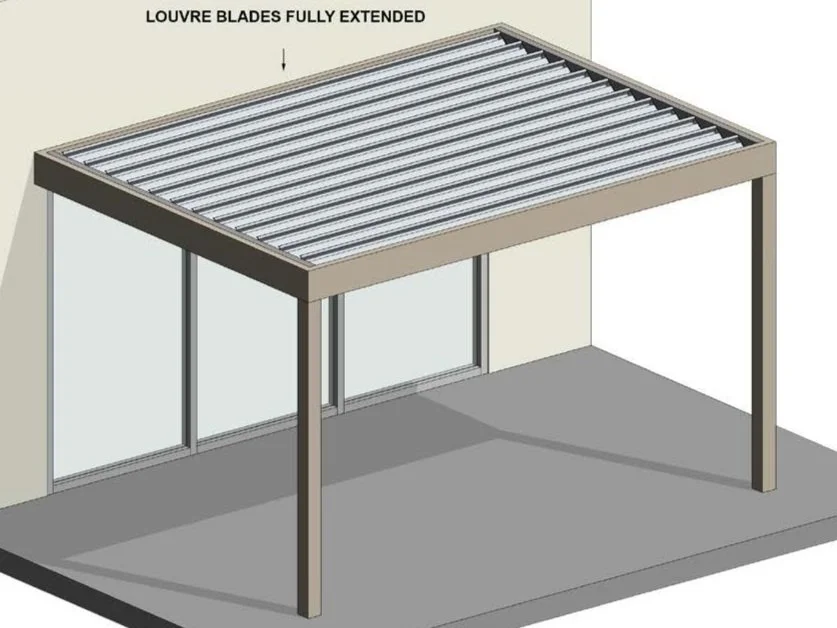

Four Sided Frame, Blades Fully Extended In Operating Position

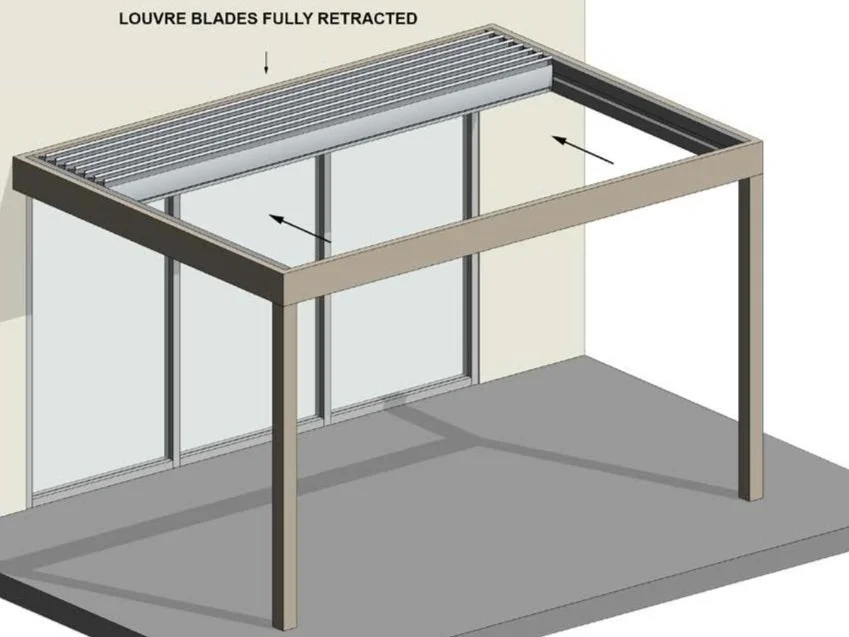

Four Sided Frame, Blades Fully Retracted

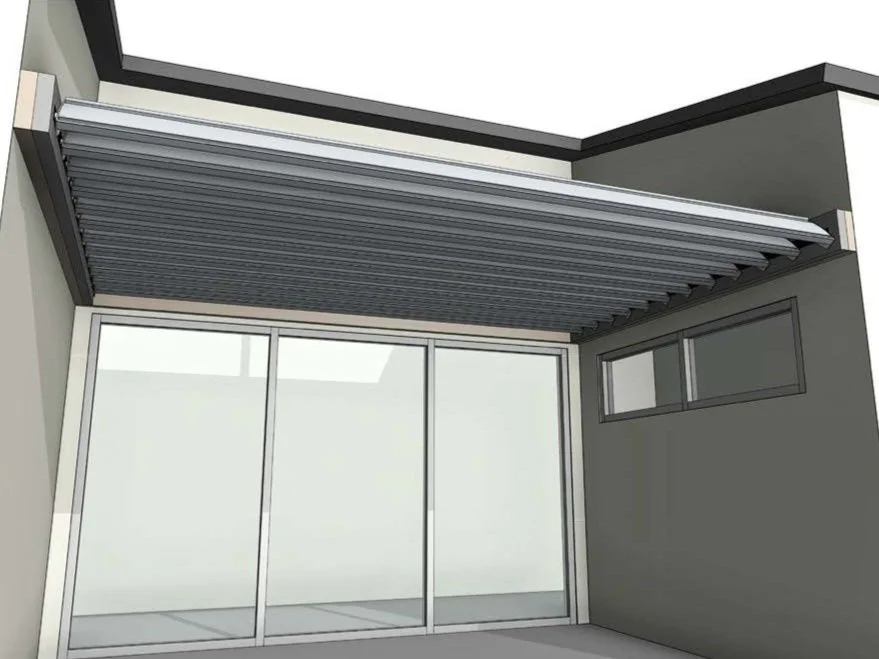

Three Sided Frame, Blades Fully Extended In Operating Position

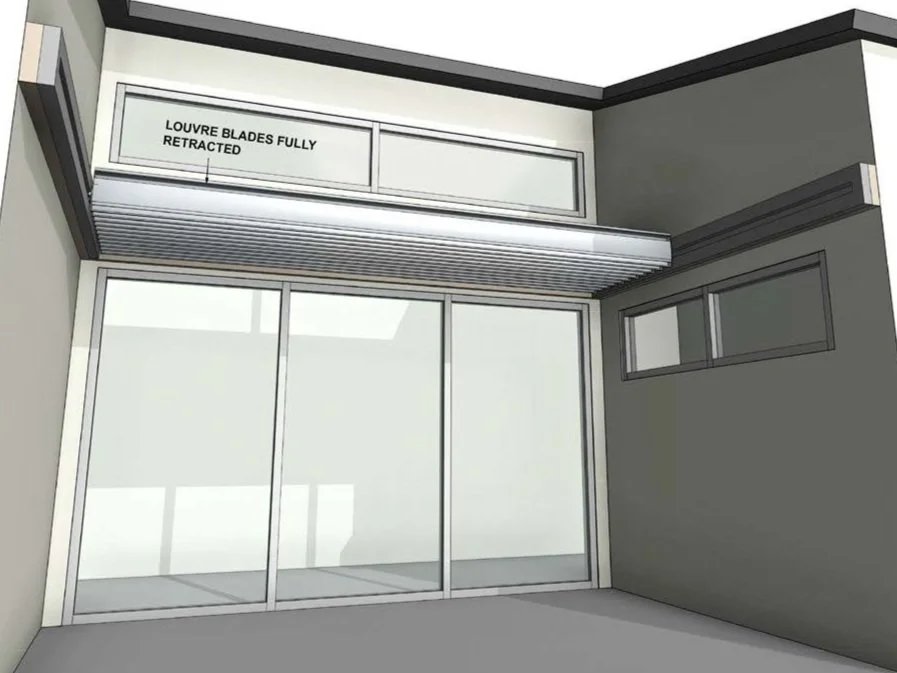

Three Sided Frame, Blades Fully Retracted, No Front Beam Required

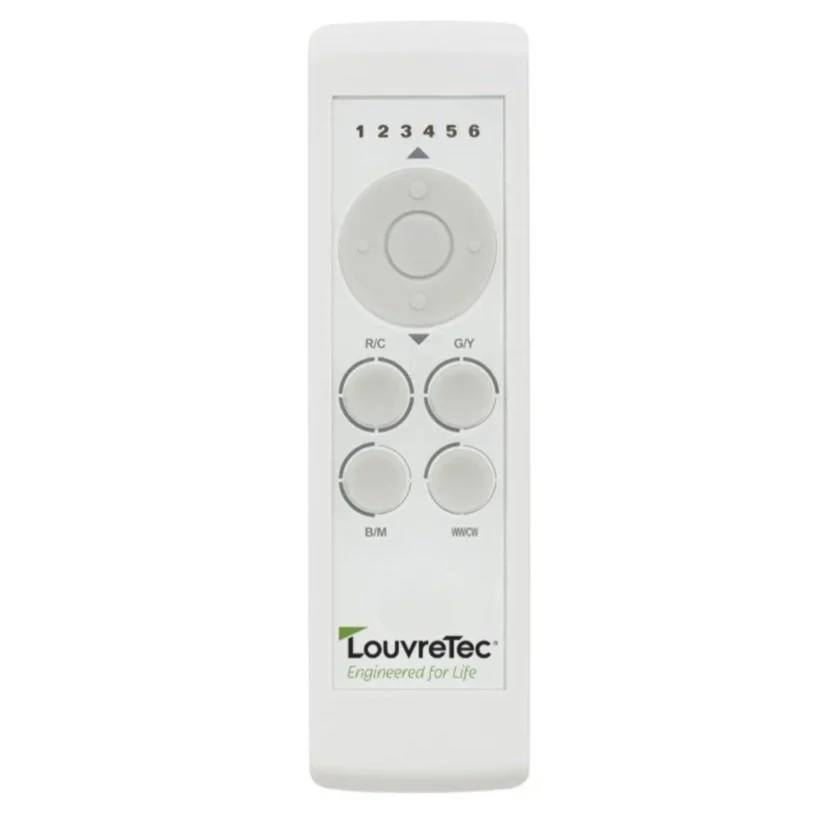

Controls & Sensors

Sutio 4
Control From 1-5
Louvered Roof Sections

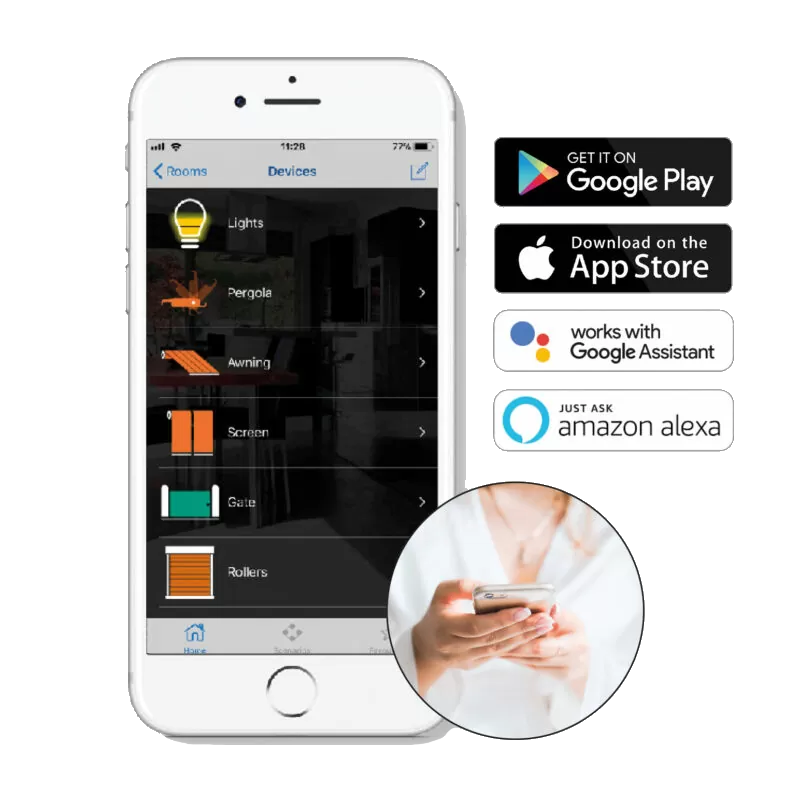

Daisy Smart Home App
Control Unlimited Louvered Roof Sections All From Your Android Or Apple Devices.

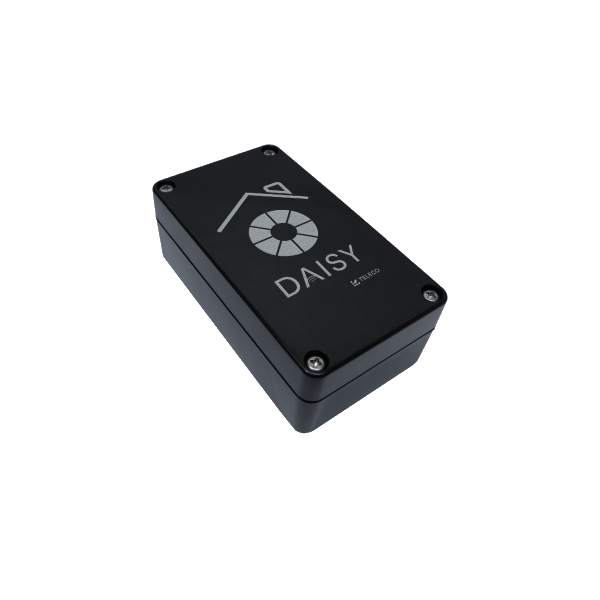

Daisy App Control Box
Works With The Daisy App On Android Or Apple Devices.
Rain & Wind Sensor
Closes Louvers Automatically When It Senses Rain or Wind.
Wired Rain Sensor
Closes Louvers When It Starts To Ran.
Wired Wind Sensor
Closes Louvers Automatically When The Wind Picks Up.
Tempature Sensor

Design Styles

Modern

Enhance your outdoor space with our sleek and stylish Modern Style Structures. These aluminum structures feature clean lines, minimalistic design, and a contemporary look that seamlessly blends with modern architecture. Create a minimalist retreat that provides shade and comfort while making a bold statement in your outdoor space.
Traditional

Experience timeless elegance with our Traditional Style Structures. Crafted with attention to detail, these aluminum structures exude classic charm. Their ornate columns and decorative elements add a touch of sophistication to your outdoor area. Perfect for those who appreciate the beauty of tradition and the comforts of the outdoors.
Contemporary

Discover the perfect fusion of style and function with our Contemporary Style Structures. These aluminum structures combine cutting-edge design with practicality. With clean angles, innovative materials, and a focus on versatility, our Contemporary Patio Covers are the ideal choice for those seeking a modern outdoor living space that's both inviting and functional.

Schedule A Free In Home Design & Estimate

Surface Finishes

Custom Powder Coat Color, Texture, & Finish Options
Pure White Powder Coat
Sandtone Powder Coat
Anodized Silver Powder Coat
Silver Powder Coat
Bronze Powder Coat
Matte Black Powder Coat
Antique Bronze Powder Coat
Light Cedar Woodgrain - Eurocote
Dark Cedar Woodgrain - Eurocote
Light Riverwood Woodgrain - Eurocote
Light Bean Woodgrain - Eurocote
Dark Bean Woodgrain - Eurocote
Dark Riverwood Woodgrain - Eurocote
Black Riverwood Woodgrain - Eurocote
Gray Anodized
Sand Anodized
Bronze Anodized
Light Brown Anodized
Light Bronze Anodized
Silver Anodized

Accessories

Infrared Heaters
Control Your Level Of Comfort With Our 2000 -
6000 Watt Single and Dual Element Heaters
Outdoor Ceiling Fans
Enhance The Breeze and Keep The Fly’s Away
With Any Outdoor Ceiling Fan Of Your Choice
Outdoor Tv
Create An Outdoor Entertainment Area
Sonos Speakers
Choose Different Options To Bring Your Music Experience Outdoors. Our Installers Wire Everything Internally, Providing a Clean And Professional Installation. Sonos Offers A Wide Range Of Options That Are Easily Connected And Synced Together.
Tv Projector
Rollup Motorized Projector That Also Works As A Shade, Screen, & Wind Protector
Zipper Screens
Block Of The Sun and Wind With Our Manual Or Motorized Screens. Custom Powder Coat Colors To Match Your Frame. Choose From 80% -99% Blocking or Even Our Fully Black Out Screens. Up to 75mph Wind Rating
Recessed LED Lights
Custom Powder Coated To Match Any Color Of Your Frame. Choose From Warm White, Cool White, Or Bright White Color Options. Lights Can Be Dimmable.
Led Light Strips
Choose From Warm White to Bright White or Any RGBWW Color And Set Your Theme.
Our Lights Can Be Controlled From An App & Connected To Your Smart Home Soluction
String Lights
Choose From Warm White to Color Changing String Lights Set Your Mood & Theme.
Misting Systems
Cool The Temperatures In The Summer With Our High Pressure Misting Systems.
Misting Fan
Choose A Cool Off Area And Enjoy. Our Installers Will Run The Electrical, Waterlines, & Professionally Hide Everything For A Clean Installation.
